Sewage Treatment Systems
Our Modulus Sewage Treatment systems are designed and manufactured to be capable of taking care of effluent of cities and towns.
The Modulus is ideally suited to serve a range of applications from small domestic residences to small communities and commercial properties.
Independently tested at the CERIB test facility in France to meet the requirements of EN 12566:3.
The Modulus system is at the forefront of pioneering design with low cost ownership and maintenance.
Modulus Systems
-
OM6LP
Population Eqv 6
A low -profile design, modular system based on a proven traditional 3-chamber design.
It can be installed in a variety of footprints giving it great versatility and flexibility.
Optional configuration to suit footprint
Gravity and pumped discharge options
3-stage process employing submerged and biological aerated filter (SAF/BAF) technology
Includes blower unit, housing and pedestrian rated inspection covers
Litres per day: 1080
BOD Loading grams per day: 360
H: 1090 mm x W: 1260 mm x L:4180 mm
-
OM6
Population Eqv 6
A modular system based on a proven traditional 3-chamber design.
It can be installed in a variety of footprints giving it great versatility and flexibility.
Optional configuration to suit footprint
Gravity and pumped discharge options
3-stage process employing submerged and biological aerated filter (SAF/BAF) technology
Includes blower unit, housing and pedestrian rated inspection covers
Litres per day: 1080
BOD Loading grams per day: 360
H: 1535 mm x W: 1260 mm x L:4180 mm
-
OM9
Population Eqv 9
A modular system based on a proven traditional 3-chamber design.
It can be installed in a variety of footprints giving it great versatility and flexibility.
Optional configuration to suit footprint
Gravity and pumped discharge options
3-stage process employing submerged and biological aerated filter (SAF/BAF) technology
Includes blower unit, housing and pedestrian rated inspection covers
Litres per day: 1800
BOD Loading grams per day: 540
H: 1535 mm x W: 1260 mm x L:4180 mm
-

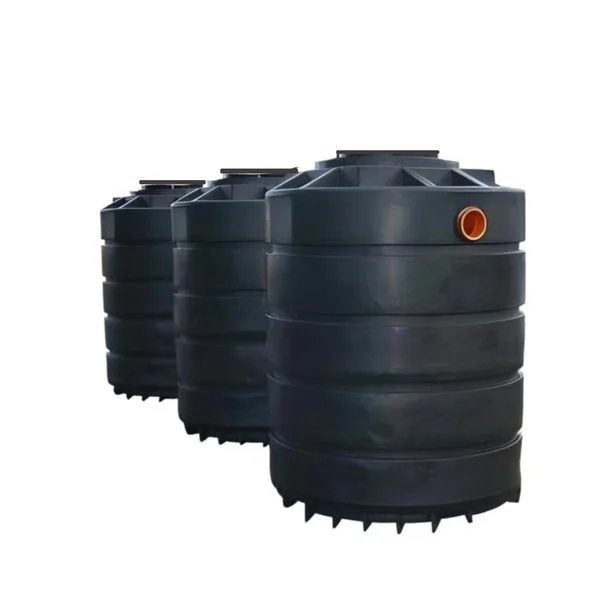

OM12
Population Eqv 12
A modular system based on a proven traditional 3-chamber design.
It can be installed in a variety of footprints giving it great versatility and flexibility.
Optional configuration to suit footprint
Gravity and pumped discharge options
3-stage process employing submerged and biological aerated filter (SAF/BAF) technology
Includes blower unit, housing and pedestrian rated inspection covers
Litres per day: 2160
BOD Loading grams per day: 720
H: 1920 mm x W: 1260 mm x L:4180 mm
-
OM20
Population Eqv 20
A modular system based on a proven traditional 3-chamber design.
It can be installed in a variety of footprints giving it great versatility and flexibility.
Optional configuration to suit footprint
Gravity and pumped discharge options
3-stage process employing submerged and biological aerated filter (SAF/BAF) technology
Includes blower unit, housing and pedestrian rated inspection covers
Litres per day: 3600
BOD Loading grams per day: 1200
H: 2135 mm x W: 1260 mm x L:4180 mm
-
OM25
Population Eqv 25
A modular system based on a proven traditional 3-chamber design.
It can be installed in a variety of footprints giving it great versatility and flexibility.
Optional configuration to suit footprint
Gravity and pumped discharge options
3-stage process employing submerged and biological aerated filter (SAF/BAF) technology
Includes blower unit, housing and pedestrian rated inspection covers
Litres per day: 4500
BOD Loading grams per day: 1500
H: 2130 mm x W: 1560 mm x L:5080 mm
-
OM30
Population Eqv 30
A modular system based on a proven traditional 3-chamber design.
It can be installed in a variety of footprints giving it great versatility and flexibility.
Optional configuration to suit footprint
Gravity and pumped discharge options
3-stage process employing submerged and biological aerated filter (SAF/BAF) technology
Includes blower unit, housing and pedestrian rated inspection covers
Litres per day:
BOD Loading grams per day:
H: mm x W: mm x L: mm
-
OM40
Population Eqv 40
A modular system based on a proven traditional 3-chamber design.
It can be installed in a variety of footprints giving it great versatility and flexibility.
Optional configuration to suit footprint
Gravity and pumped discharge options
3-stage process employing submerged and biological aerated filter (SAF/BAF) technology
Includes blower unit, housing and pedestrian rated inspection covers
-
Sample Chamber
A sample chamber is required to provide a point of access between the treatment plant and soakaway/drainage field.
The design is such that a sample may be obtained from the flow of treated effluent thus avoiding any puddling of stagnant water.
Inverts tailored to specific MODULUS design
Spigot connection for easy installation
Fall between inlet and outlet promotes clean sampling
Includes pedestrian rated inspection cover
Installation Images
